Bending Fatigue /Pulverizer Shaft

A coal pulverizer shaft was received for failure analysis. Two other shafts were broken in a similar manner prior to this failure. The shaft material was specified as AISI 4340 steel. It was indicated that new gearboxes have been installed to improve reliability.

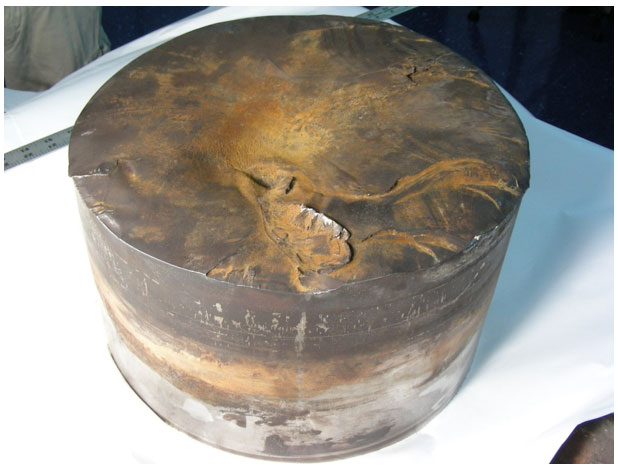

The as-received condition of the failed shaft is shown. There was some abrasion around half of the shaft circumference. Rockwell C (RC) hardness was measured across the fracture surface as shown below. The hardness was fairly uniform without any significant changes. It appears the shaft was through-hardened.

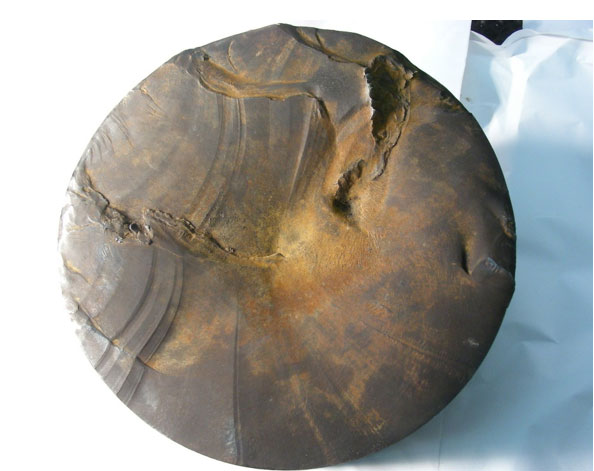

Visual examination of the fracture surface revealed two distinctive fracture regions as shown; a fatigue region (Location A) and a final overload rupture (Location B). The ellipse on the fracture surface at Location B illustrates the fast fracture zone. Rest of the flat surface is the fatigue region. An eccentric orientation of the fast fracture surface indicates unbalanced loads were applied on this shaft. Beach marks (shown by red arrow) due to the rotational bending fatigue indicate that cracking started at the outer edge (Location A) and propagated around the shaft circumference. The bending stresses coupled with shaft rotation led to the failure. It appears that the cracks had initiated in the multiple planes as indicated by a “step” at Location A. The final overload rupture was at Location B, where crack reached its critical length. Fracture in this shaft was due to low nominal stresses (light loads), because the fatigue surface is more than 80% of the total fracture surface.



As-received shaft with specimen locations illustrated and close-up of failures.


Microhardness HV 500g
Location Value
1 290
2 302
3 304
4 287
5 318
6 330
7 302
8 298
9 326
10 300





Some smeared grains were observed due to rubbing. These smeared grains suggest that unbalanced forces were acting on the shaft.

    Microstructure is a typical AISI 4340 steel with tempered martensitic structure. Similar microstructure was observed irrespective of the specimen location. Some inclusions were observed. However, the amount of inclusions was insignificant. Inclusions generally occur in the steels during manufacturing.

The coal pulverizer shaft failed due to rotational bending fatigue. The bending loads coupled with shaft rotation led to the failure. Smeared grains and eccentric orientation of the final rupture indicate that the shaft was subjected to unbalanced loads. The fracture surface indicates that the shaft was subjected to low nominal stresses (light loads). A small amount of inclusions were observed in the shaft material. No material defects were observed.
